Yealink W60P

Descrição

Yealink W60P

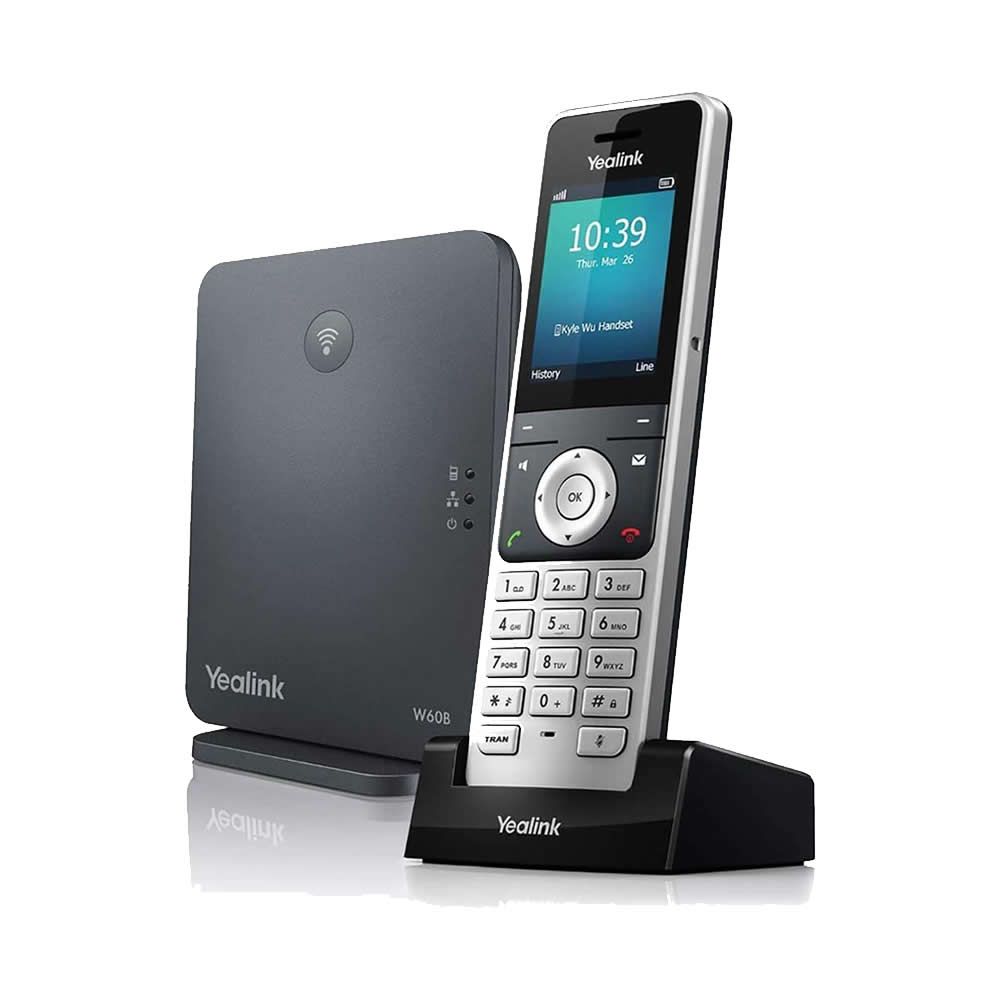

Telefone Sem Fio w56H com Base W60 Dect IP Yealink

O Yealink W60P é um kit composto por 1 aparelho Yealink W56H Dect e uma base W60, essa solução é ideal para pequenas e médias empresas. A base suporta até 8 aparelhos sem fio Yealink nos modelos W52H, W56H Dect e proporciona mobilidade aos usuários sem perca de sinal ou qualidade na chamada.

O W60P é compatível com o codec Opus e também possui rápida inicialização de sinal e conexão, reduzindo o tempo de inatividade do telefone. Os protocolos TLS e SRTP também estão presentes no W60P e criam uma criptografia nas mensagens previnindo ataques como escuta ou alteração de conteúdo.

A Yealink pensando nas pequenas e médias empresas projetou o W60P para acompanhar a rotina dos usuários que necessitam de mobilidade no ambiente empresarial e com ótimo custo-benefício.

Principais recursos e benefícios

• Suporte ao Opus audio codec
• Sistema de redução de interferências
• Protocolos TLS e SRTP
• Provisionamento e Redirecionamento (RPS)

1.  Datasheet

Phone Features
> Up to 8 simultaneous calls
> Up to 8 handsets
> Up to 8 VoIP accounts
> Up to 2 simultaneous calls per handset
> Up to 5 repeaters per base station (RT20/RT20U)
> Up to 6 repeaters per base station (RT30)
> Handset selection for receiving call
> Handset and number selection for placing call
> Paging, intercom, auto answer, dial plan
> Call hold, call transfer, 3-way conference
> Switching between calls
> Call waiting, mute, silence, DND
> Caller ID with name and number
> Anonymous call, Anonymous call rejection
> Call forward (always/busy/no answer)
> Speed dial, voicemail, redial
> Message Waiting Indication (MWI)
> Music on hold (server-based)
> Local phonebook for up to 800 entries
(store in the base)
> Remote phonebook/LDAP
> Phonebook search/import/export
> Call history (all/missed/placed/received)
> Direct IP call without SIP proxy
> Reset to factory, reboot
> Keypad lock, emergency call
> Broadsoft directory, BroadSoft call log
> Broadworks feature key synchronization
> Shared Call Appearance (SCA)

Personalization
> 9 ringer melodies
> Screen saver
> Multilingual user interface

Management
> Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
> Auto-provision with PnP
> Handset upgrade: OTA (Over-The-Air)
> Configuration: browser/phone/auto-provision
> Trace package and system log export

Audio Features
> Full-duplex speakerphone
> Hearing Aid Compatibility (HAC) compliant
> Receiver volume control: 5 steps
> Ringer volume control: 5 steps+off
> Multiple advisory tones
> Acoustic warning for low battery status
> DTMF
> Wideband codec: Opus, AMR-WB (optional), G.722
> Narrowband codec: AMR-NB (optional), PCMU,
PCMA, G.726, G.729, iLBC
> VAD, CNG, AGC, PLC, AJB
> AEC (supported by W52H and W56H)
> Support VQ-RTCPXR (RFC6035), RTCP-XR

Network Features
> SIP v1 (RFC2543), v2 (RFC3261)
> SNTP/NTP
> VLAN (802.1Q and 802.1P)
> 802.1x, LLDP
> STUN Client (NAT Traversal)
> UDP/TCP/TLS
> IP assignment: static/DHCP
> Support outbound proxy server backup

Security
> Open VPN
> Transport Layer Security (TLS)
> HTTPS (server/client), SRTP (RFC3711)
> Digest authentication
> Secure configuration file via AES encryption
> Support SHA256/SHA512/SHA384
> Three-level configuration mode: Admin/Var/User

DECT
> Frequency bands:
1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US)
> DECT Standards: CAT-iq2.0

Interface
> 1 x RJ45 10/100M Ethernet port
> Power over Ethernet (IEEE 802.3af), Class 1
> Headset jack (3.5 mm)

Physical Features
> Indoor Range: 20m~50m (The ideal distance is 50m)
> Outdoor Range: 300m (in ideal conditions)
> Standby Time: 400 hours (in ideal conditions)
> Talk Time: 30 hours
> 2.4’’ 240×320 pixels color display
> Desktop or wall mountable
> LCD backlit, key backlit
> Energy-saving ECO mode/ECO Mode+
> 12 key numerical keypad, 5 navigation keys,
2 softkeys, 6 function keys, 6 shortcut keys
> Three LED indicators on W60B:
– 1 x Registration LED
– 1 x Network Status LED
– 1 x Power Indicator LED
> External Yealink AC adapter：
AC 100-240V Input and DC 5V/600mA Output
> Color: Handset: Alabaster Silver; Base: Classic Grey
> Phone size: 175mm x 53mm x 20.3mm
> Base station size: 130mm x 100mm x 25.1mm
> Operating humidity: 10~95%
> Operating temperature: 0~+40°C (+32~104°F)

Package Features
> Package content:
– W56H Handset
– W60B Base Station
– Base Stand
– USB Charger Cradle
– Two Power Adapters
– Ethernet Cable
– Belt Clip
– Rechargeable Battery
– Quick Start Guide
– Handset Protective Case (optional)
> Qty/CNT: 10 PCS
> Giftbox size: 205mm*196mm*95mm
> Carton meas: 495mm*406mm*223mm
> N.W: 7.5 kg
> G.W: 8.3 kg
